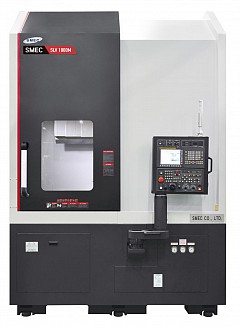

Tiện đứng CNC SMEC SLV 800 B (21″)
LIÊN HỆ
Strongest in its class with superb structural design
Simultaneous heavy duty and precision turning
- High speed, precision and high rigidity spindle- Stable machine structure
- Significantly reduced non-cutting time and high productivity
DESCRIPTION | SLV 800 B (21″) | |
---|---|---|
Chuck | Chuck size | 21" |
Capacity | Swing over bed | 890 |
Swing over cross slide | 740 | |
Max. turning diameter | 830 | |
Max. machining length | 800 | |
Spindle | Spindle speed | 1800 |
Spindle nose | A2-11 | |
Spindle bore diameter | 104 | |
Spindle motor (Cont./Max) | 22/30[30/37] | |
Travels | X-axis travel | 440 |
Z-axis travel | 800 | |
X-axis Rapid traverse rate | 20 | |
Z-axis Rapid traverse rate | 20 | |
Turret | Number of tool stations | 12 |
Turning tool shank size | 32 | |
Boring bar diameter | 63 | |
Turret index time(next station swivel time) | 0.30 | |
Machine | Size (with Side Chip conveyor) L×W×H | 2,052(3,311) × 2,782 × 3,491 |
Size (with Rear Chip conveyor) L×W×H | 2,052 × 2,782(4,282) × 3,491 | |
Machine weight | 11,000 | |
Coolant tank capacity | 300 | |
Electric power supply | 53/220 | |
Controller | FANUC |
